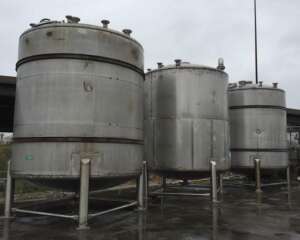

- TYPE:Storage Tank
- CAPACITY-GALLONS:10500 Gal.
- MAT'L CONSTRN-SHELL:316LSS
- ORIENTATION:Vertical on 4 SS legs, 6" dia with bracing.
- PRESSURE-SHELL:Atm#
- SHELL-DIAMETER:12'ID
- SHELL-LENGTH:12'4''
- SUPPORTS-QTY/TYPE/HIGH:4 @ 10" I-Beam Legs, 24" tall approx.
- THICKNESSES-TOP HEAD:3/16" approx.
- THICKNESSES-SHELL:3/16" approx.
- THICKNESSES-BOTTOM HEAD:3/16" approx.
- CONNECTIONS-TOP HEAD:24”MW, 12", 8", 6"[3], 4”[3], 3”[2], 1"
- CONNECTIONS-BOTTOM HEAD:6" CBO [tbc]
- COMMENTS-ASME ETC.:(4) internal baffles. (2) stiffener rings. Mounted on stainless steel legs.
- SHIPPING SIZE-W X H X L:12'W X 12'H X 16'L
- APPROX. WEIGHT-LBS:6000#
