- MFD.BY:Electro Welding
- DATE MFD:1982

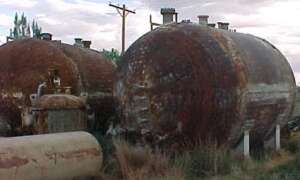

- TYPE:Pressure vessel
- CAPACITY-GALLONS:15200 gallons total approx.
- MAT'L CONSTRN-SHELL:CS SA-516-70
- ORIENTATION:Horizontal
- PRESSURE-SHELL:MAWP 450# @ 450 Deg F, 738# Hyd.

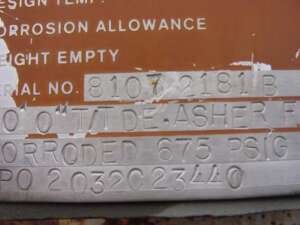

- CERTIFICATION-CODE/STD/NBD:ASME NBd
- SHELL-DIAMETER:12' ID
- SHELL-LENGTH:10' T-T

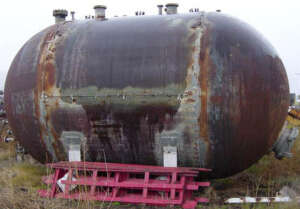

- SUPPORTS-QTY/TYPE/HIGH:Welded saddles [2]
- THICKNESSES-TOP HEAD:1.0554"
- THICKNESSES-SHELL:2.0625"
- THICKNESSES-BOTTOM HEAD:1.0554"

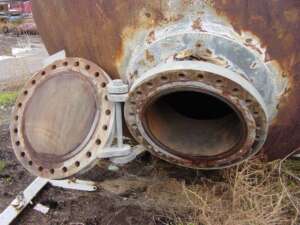

- CONNECTIONS-TOP HEAD:20"MH,2", 1"
- CONNECTIONS-SHELL:8", 6"[3]
- CONNECTIONS-BOTTOM HEAD:3" [5]
- PRIOR SERVICE:De-Asher
- SHIPPING SIZE-W X H X L:12'3''W X 14'3''H X 23'L
- APPROX. WEIGHT-LBS:57800#
