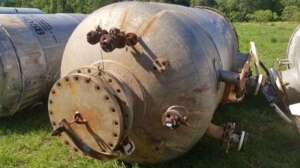

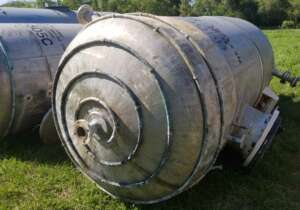

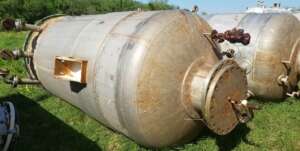

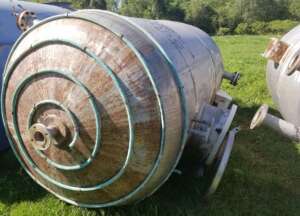

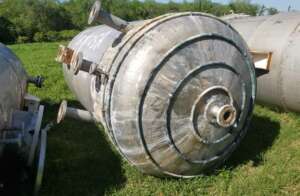

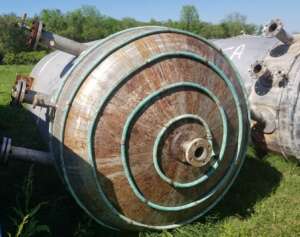

- MFD.BY:Graver Tank
- DATE MFD:1988
- TYPE:Pressure vessel.
- CAPACITY-GALLONS:2000 Gal.
- MAT'L CONSTRN-SHELL:304LSS
- ORIENTATION:Vert.
- PRESSURE-SHELL:155# @ 302°F Hyd 233#
- CERTIFICATION-CODE/STD/NBD:ASME
- SHELL-DIAMETER:5'6''
- SHELL-LENGTH:10’ sm-sm
- SUPPORTS-QTY/TYPE/HIGH:2 Lugs
- THICKNESSES-TOP HEAD:1/2" est
- THICKNESSES-SHELL:1/2" est
- THICKNESSES-BOTTOM HEAD:1/2" est
- CONNECTIONS-TOP HEAD:16", 1", 3/4" [3]
- CONNECTIONS-SHELL:16”, 4"[3] 2”, 3/4"[2]
- CONNECTIONS-BOTTOM HEAD:3”
- PRIOR SERVICE:Vinyl Chloride
- SHIPPING SIZE-W X H X L:6'W X 6'H X 12'L
- APPROX. WEIGHT-LBS:5000#
