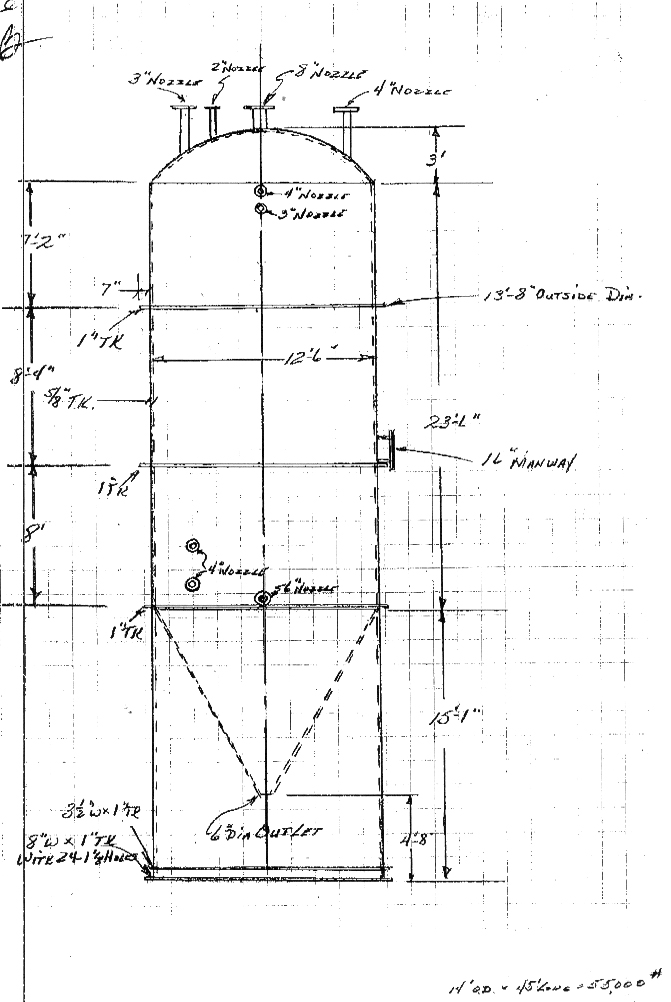

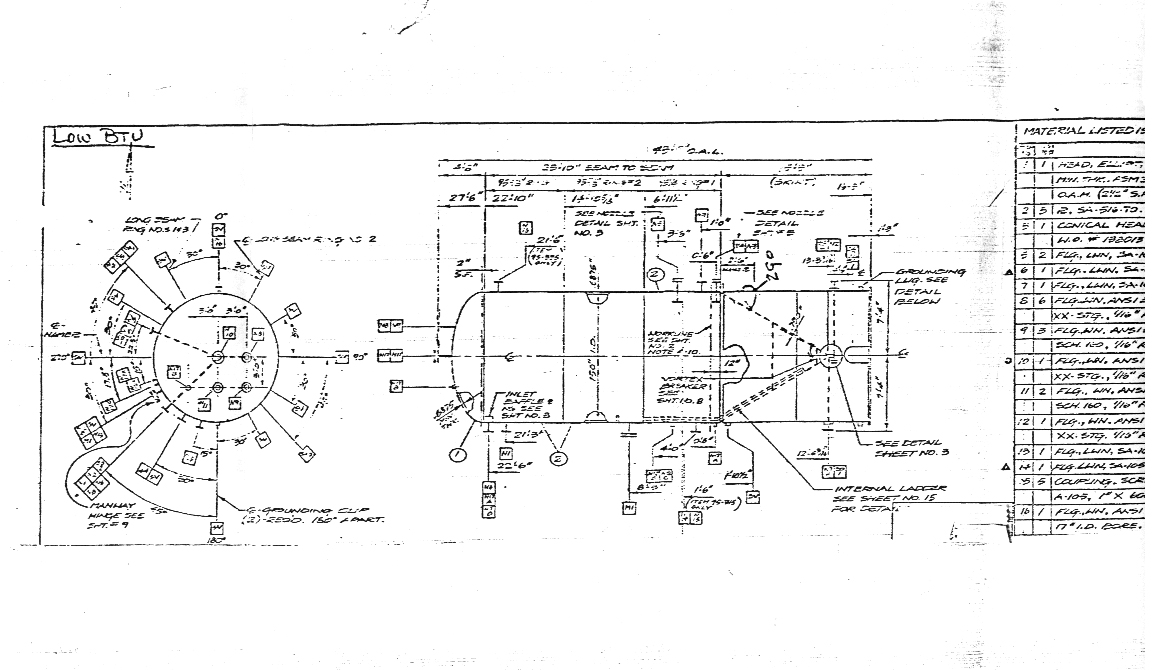

MFD.BY: Riley-Beaird, Shreveport La. DATE MFD: 1990 TYPE: Pressure vessel CAPACITY-GALLONS: 26024 Gal. (3500CF) MAT'L CONSTRN-SHELL: Rubber Lined CS (0.1875'' lining) Lining 0.1875'' Triplex Polymetric Protective Lining, 3 layers -Neoprene / Natural/ Synthetic. ORIENTATION: Vertical. Originally skirt supported, 15'1" Long. 4'8" bottom nozzle ground clearance. PRESSURE-SHELL: 135# MAWP @ 300°F, Hyd. 208# CERTIFICATION-CODE/STD/NBD: ASME SHELL-DIAMETER: 12'6'' SHELL-LENGTH: 23’10'' s-s plus 60° cone bottom. SUPPORTS-QTY/TYPE/HIGH: Skirt supported THICKNESSES-TOP HEAD: 0.6875'' THICKNESSES-SHELL: 0.6875'' THICKNESSES-BOTTOM HEAD: 0.75'' CONNECTIONS-TOP HEAD: 8”, 4”, 3”, 2”, 1.5'' CONNECTIONS-SHELL: 18”M/W w/hinged cover, 6”, 4”, (2)2”, 1.5'' & others CONNECTIONS-BOTTOM HEAD: 6” PRIOR SERVICE: Evaporator system. Chlorine @ 200deg F, 15"Vac. Originally designed as raw/Low BTU feedstock storage tank for waste incinerator system, project cancelled before installation. COMMENTS-ASME ETC.: 45’OAH. Installed, out of service. SHIPPING SIZE-W X H X L: 12'6''W X 12'6''H X 37'L APPROX. WEIGHT-LBS: 55000#
