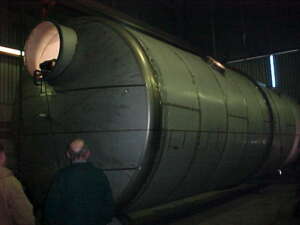

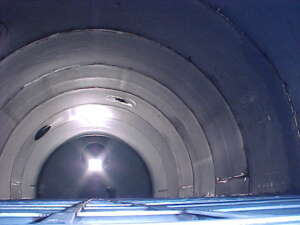

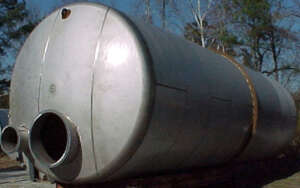

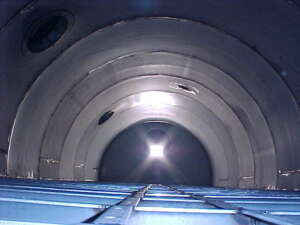

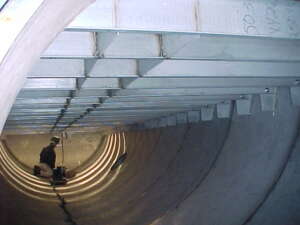

1270668 - TANK, 30000 GAL, 316SS, ATM#, 12' X 36', VERT, NEW [10]
MFD.BY:GPE
DATE MFD:2019
TYPE:Storage tank.
CAPACITY-GALLONS:30000 Gal.
MAT'L CONSTRN-SHELL:316LSS
ORIENTATION:Vertical
PRESSURE-SHELL:ATM# @ 250Deg F
SHELL-DIAMETER:12' ID approx.
SHELL-LENGTH:36' straight side.
SUPPORTS-QTY/TYPE/HIGH:Flat bottom
THICKNESSES-TOP HEAD:0.1875''
THICKNESSES-SHELL:Upper 32' shell, 10ga approx., lower 4' of shell 0.1875''
THICKNESSES-BOTTOM HEAD:0.1875''
CONNECTIONS-TOP HEAD:20" MH, 4" [3]. 150#FS Lap joint flange.
CONNECTIONS-SHELL:4" lower shell side outlet. 150#FS Lap joint flange.
CONNECTIONS-BOTTOM HEAD:NA
PRIOR SERVICE:UNUSED New fabrication built to suit.
COMMENTS-ASME ETC.:2 lifting eyes on top head. Max. product density approx. 2.0 SG All flanges, openings, and machined surfaces to be covered prior to shipment. Welds sandblasted. Interior and exterior cleaned and descaled w/10% phosphoric acid and rinsed w/water. Delivery
