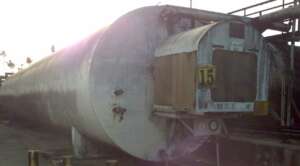

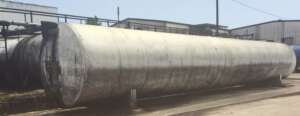

- MFD.BY:Tomco
- DATE MFD:1993
- TYPE:Pressure vessel
- CAPACITY-GALLONS:30000 Gal.
- MAT'L CONSTRN-SHELL:CS SA612
- ORIENTATION:Horizontal
- PRESSURE-SHELL:350#MAWP @ -20DegF/200Deg F. Hyd. 525# ASME NBd.
- CERTIFICATION-CODE/STD/NBD:ASME. N Bd
- SHELL-DIAMETER:9'ID
- SHELL-LENGTH:60'4''T-T
- SUPPORTS-QTY/TYPE/HIGH:2 CS Saddles welded to vessel
- THICKNESSES-TOP HEAD:0.948''
- THICKNESSES-SHELL:0.956''
- THICKNESSES-BOTTOM HEAD:0.948''
- CONNECTIONS-TOP HEAD:NA
- CONNECTIONS-SHELL:12" X 16" MW in top of tank. 4", 3"Safety, 2" [5], 1.5", 1.25", 1"[3]
- CONNECTIONS-BOTTOM HEAD:NA
- PRIOR SERVICE:CO2 storage 120Ton
- COMMENTS-ASME ETC.:Installed. Loading and shipping available at extra cost, est $15k to Gulf Port.
- SHIPPING SIZE-W X H X L:10'W X 11'1''H X 71'1''L
- APPROX. WEIGHT-LBS:85000#
