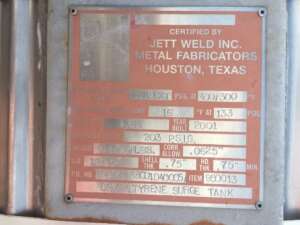

- MFD.BY:Jett Weld Inc
- DATE MFD:2001

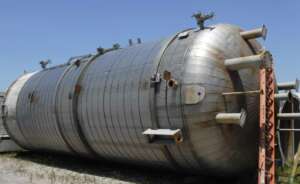

- TYPE:Pressure vessel
- CAPACITY-GALLONS:30000 Gal.
- MAT'L CONSTRN-SHELL:CS
- ORIENTATION:Vertical
- PRESSURE-SHELL:FV133# MAWP @ 400Deg F. Hyd. 203#
- CERTIFICATION-CODE/STD/NBD:ASME. U-1. [Nat.Bd. Registrtion not required]
- SHELL-DIAMETER:13'6''ID
- SHELL-LENGTH:29'8''S-S, 43'1'' OAH

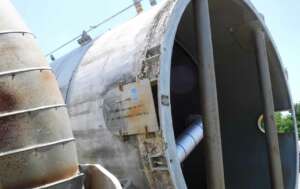

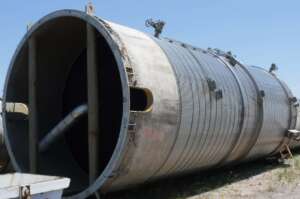

- SUPPORTS-QTY/TYPE/HIGH:Skirt 7'11'' high, 3' ground clearance to CBO c/l
- THICKNESSES-TOP HEAD:0.75''
- THICKNESSES-SHELL:0.75''
- THICKNESSES-BOTTOM HEAD:0.75''
- CONNECTIONS-TOP HEAD:10", 6"[2], 2", 1-1/2"
- CONNECTIONS-SHELL:18" MH & cover, 4'', 3", 2''[2].
- CONNECTIONS-BOTTOM HEAD:8'', 4''
- PRIOR SERVICE:Dry Styrene surge tank
- COMMENTS-ASME ETC.:2 top lifting lugs, 1 tailing lug on skirt. 12 Anchor chairs. External 1.5''insulation. Skirt external 2''fireproofing.
- SHIPPING SIZE-W X H X L:13'10''W X 13'10''H X 43'L
- APPROX. WEIGHT-LBS:64000#
