- MFD.BY:G A Mosites
- DATE MFD:1989

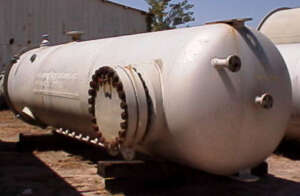

- TYPE:Pressure vessel.
- CAPACITY-GALLONS:3200 Gal.
- MAT'L CONSTRN-SHELL:CS SA 516-70
- ORIENTATION:Vert.
- PRESSURE-SHELL:756# MAWP @ 250°F, Hyd. 675#

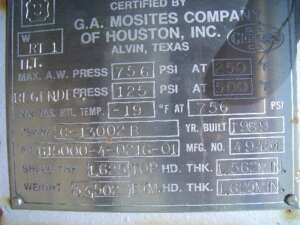

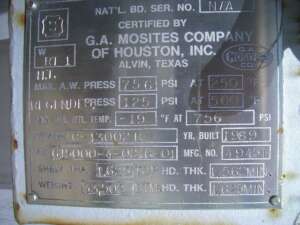

- CERTIFICATION-CODE/STD/NBD:ASME. N.Board.
- SHELL-DIAMETER:5'6'' OD
- SHELL-LENGTH:15'6'' s-s
- SUPPORTS-QTY/TYPE/HIGH:Skirt, 6' high approx.
- THICKNESSES-TOP HEAD:1.5625'' approx.
- THICKNESSES-SHELL:1.625 approx.
- THICKNESSES-BOTTOM HEAD:1.625" approx.
- CONNECTIONS-TOP HEAD:2”, 1.5'' 600#RF

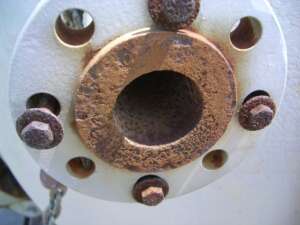

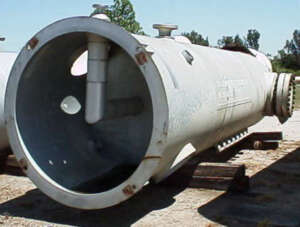

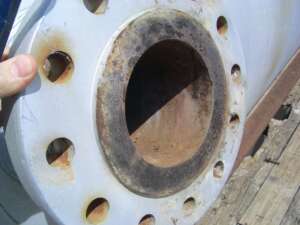

- CONNECTIONS-SHELL:24” MH [2], 6" [2], 1-1/2" [9] 600#RF
- CONNECTIONS-BOTTOM HEAD:2” 600#RF
- PRIOR SERVICE:UNUSED

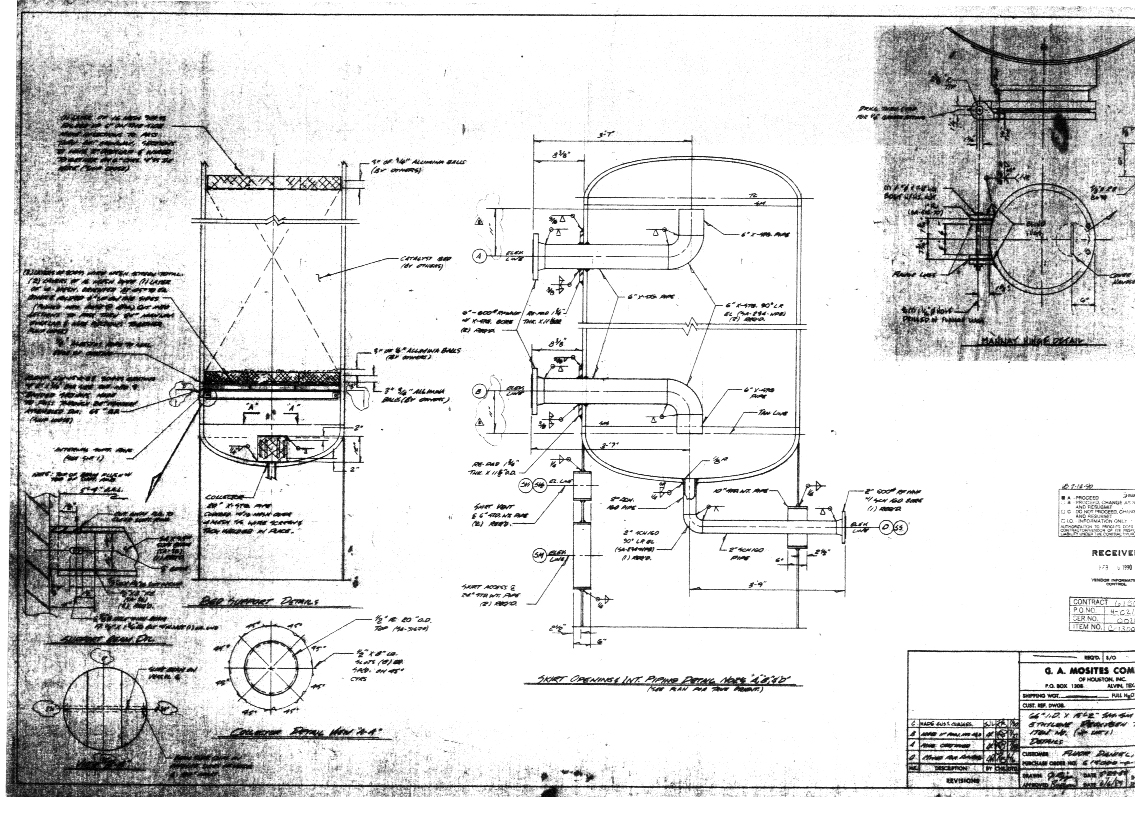

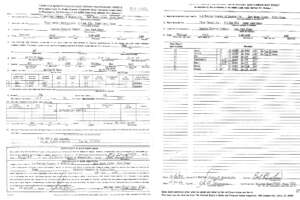

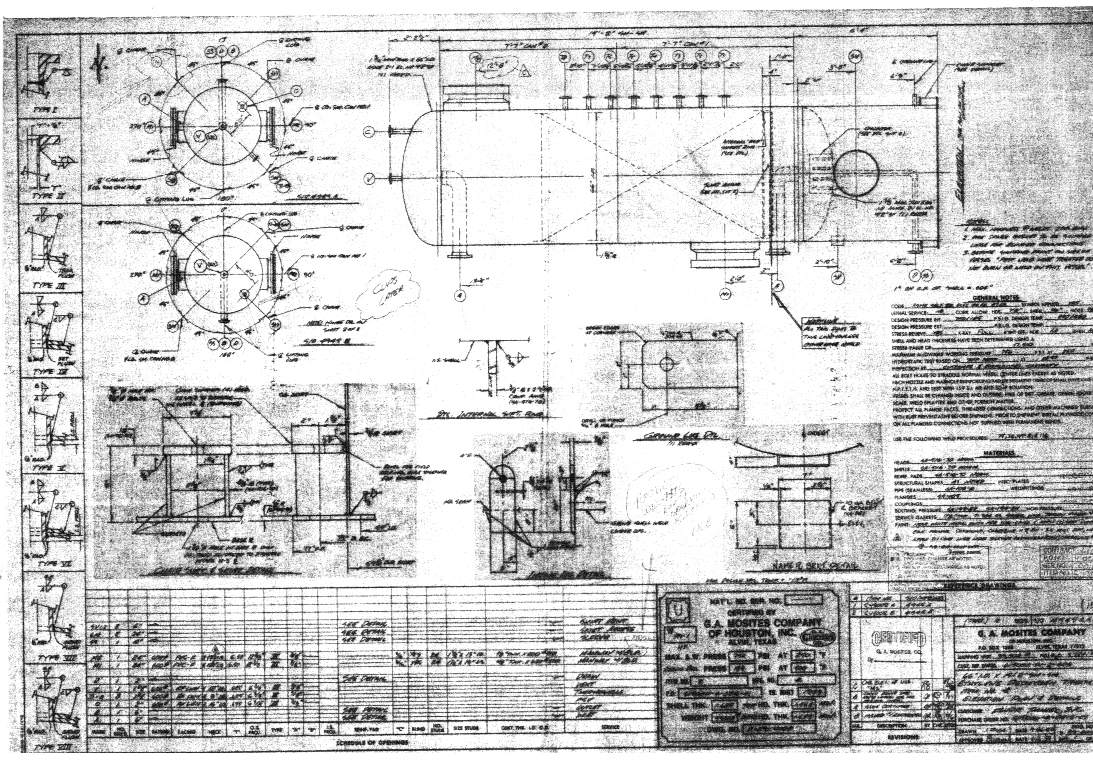

- COMMENTS-ASME ETC.:Mesh pads & supports, internal. 2 Lifting lugs on top head. Drawings & code paper available.
- SHIPPING SIZE-W X H X L:7'W X 7'H X 25'L
- APPROX. WEIGHT-LBS:33500#
