- MFD.BY:TBC
- DATE MFD:1980 approx.

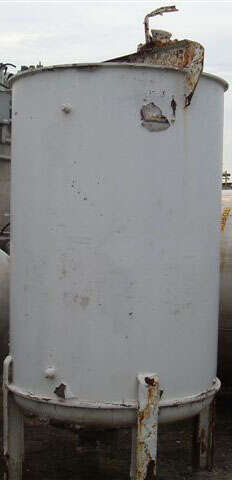

- TYPE:Storage Vessel.
- CAPACITY-GALLONS:540 Gal.
- MAT'L CONSTRN-SHELL:304SS
- ORIENTATION:Vertical
- PRESSURE-SHELL:ATM#
- SHELL-DIAMETER:4' OD
- SHELL-LENGTH:5'8'' t-t
- SUPPORTS-QTY/TYPE/HIGH:4 Legs, 18'' high approx.
- THICKNESSES-TOP HEAD:NA
- THICKNESSES-SHELL:0.1875''
- THICKNESSES-BOTTOM HEAD:0.1875''
- CONNECTIONS-TOP HEAD:NA
- CONNECTIONS-BOTTOM HEAD:2"
- COMMENTS-ASME ETC.:Angle across top to mount agitator etc.
- SHIPPING SIZE-W X H X L:4'W X 4'H X 8'L
- APPROX. WEIGHT-LBS:1200#
