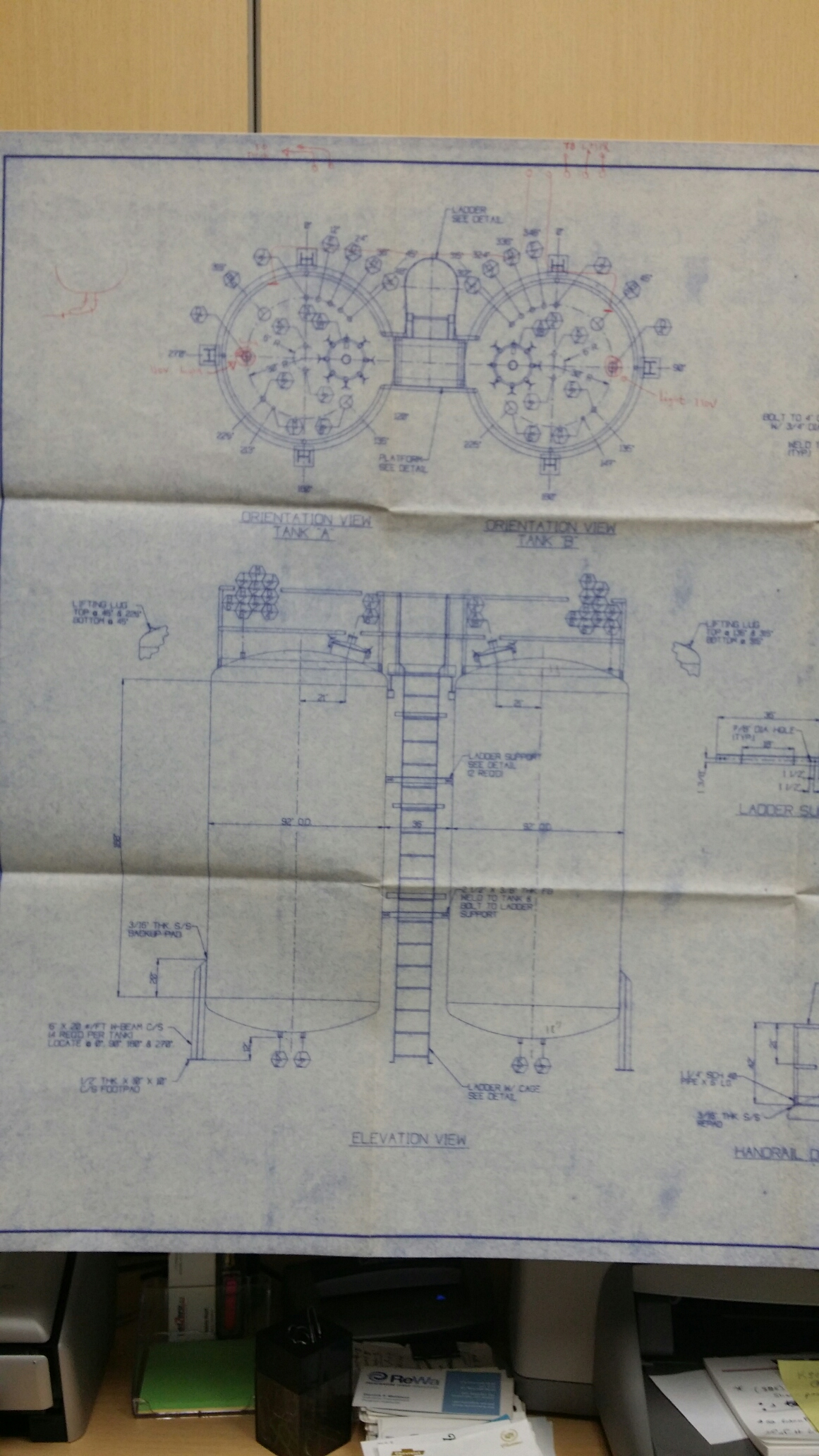

1272112 - TANK, 5450 GAL, 316SS, 50#, 8'8'' X 14', VERT [2]

  • MFD.BY:Wolfe Mechanical
  • DATE MFD:1992
  • TYPE:Vessel
  • CAPACITY-GALLONS:5450 Gal.
  • MAT'L CONSTRN-SHELL:316SS
  • ORIENTATION:Vertical
  • PRESSURE-SHELL:50#MAWP @ -20/250Deg F
  • CERTIFICATION-CODE/STD/NBD:Design/Fab Meet/exceed ASME Sec VIII Div I. with calculations based on allowable stress values per Sec II Part D. Welding per ASME Sec IX qualified procedures. Seams to be double butt welds (SMAW). Materials to ASME Sec II. MTR's available.
  • SHELL-DIAMETER:8'8''
  • SHELL-LENGTH:14' T-T approx.
  • SUPPORTS-QTY/TYPE/HIGH:4 legs, 6" I-beam CS welded to tank sides approx. 2' up side, w/12" ground clearance from bottom outlet flange.
  • THICKNESSES-TOP HEAD:3/16"
  • THICKNESSES-SHELL:3/16"
  • THICKNESSES-BOTTOM HEAD:3/16"
  • CONNECTIONS-TOP HEAD:20" dia. manway w/cover, 10 @ 1"-3"flanged.
  • CONNECTIONS-SHELL:NA
  • CONNECTIONS-BOTTOM HEAD:1" [2] NPT
  • PRIOR SERVICE:Sanitary polished internal.
  • COMMENTS-ASME ETC.:Lifting eyes top and bottom heads
  • SHIPPING SIZE-W X H X L:9'6''W X 9'6''H X 16'L
  • APPROX. WEIGHT-LBS:5000#
