- DATE MFD:1984 approx.
- TYPE:Heated Storage tank with provision for agitation
- CAPACITY-GALLONS:5000 Gal. Nominal 5300 total
- ORIENTATION:Vertical. Lugs
- MAT'L CONSTRN-SHELL:SS
- PRESSURE-SHELL:ATM#
- JACKET-TYPE/ZONES/BTM HD/MAT'L:Conventional, straight. External full shell side, weld attached, CS.
- PRESSURE-JACKET:50# approx.
- COILS-PRESSURE/TEMP/DXL:NA
- SHELL-LENGTH:10' straight side.
- THICKNESSES-TOP/SH/BTM:3/16" throughout approx.

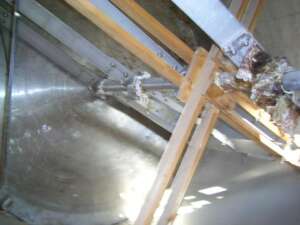

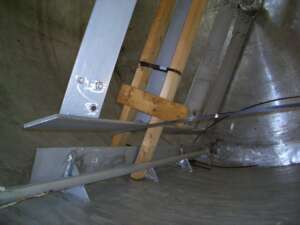

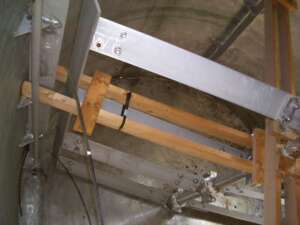

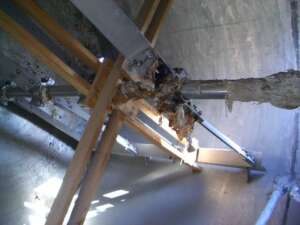

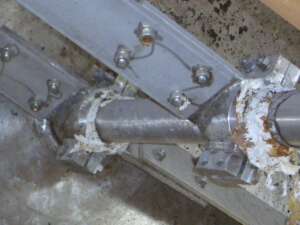

- AGITATOR-HP/RPM:25HP approx. 3/60/460V. Gear reducer output 30RPM approx. Top entering, bridge mounted. Set horizontal inclined blade pairs [6] opposing with vertical wiper blades, sweep type on 4"dia. shaft. Steady foot brg.
- CONFIGURATION-TOP/BTM:Flat top, flat bottom head
- SUPPORTS-QTY/TYPE/HIGH:On 4 lugs, welded to upper shell side
- CONNECTIONS-TOP/SH/BTM:Top: 35"x 21"Sq.MH & 21" x 24" loading hatch, 8", 2"(2). Bottom shell side outlet, 4"
- BAFFLES-QTY/W X L:4 equispaced, 5" wide
- COMMENTS-ASME ETC:(2) I-beam agitator supports straddle agitator nozzle, stitch welded to top head.
- SHIPPING SIZE-W X H X L:10'6''W X 10'6''H X 12'L
- APPROX. WEIGHT-LBS:10000#
