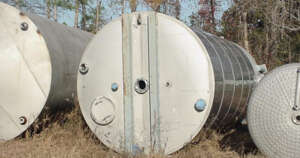

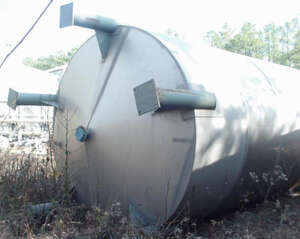

1268391 - TANK-MIX, 15000 GAL, 316LSS, ATM#, 10'4" X 24’, VERT, 10HP, NEW [10]
MFD.BY:GPE
DATE MFD:2019
TYPE:Mix tank
CAPACITY-GALLONS:15000 Gal.
MAT'L CONSTRN-SHELL:316LSS
ORIENTATION:Vertical
PRESSURE-SHELL:ATM#
CERTIFICATION-CODE/STD/NBD:Design/Fab Meet/exceed ASME Sec VIII Div I. with calculations based on allowable stress values per Sec II Part D. Welding per ASME Sec IX qualified procedures. Seams to be double butt welds (SMAW). Materials to ASME Sec II. MTR's available.
SHELL-DIAMETER:10'4" approx.
SHELL-LENGTH:24' approx.
AGITATOR-HP/RPM:Top entering, bridge mount support, I-beams.
BAFFLES-QTY/W X L:10-25 HP approx. None fitted, available extra
THICKNESSES-TOP/SH/BTM:Top: 10Ga (0.146" approx.) Shell: Upper 20' 10Ga (0.146" approx.) Bottom 4' shell and bottom head 3/16".
CONNECTIONS-TOP HEAD:18"MH, 8", 4"(2), 2"
CONNECTIONS-SHELL:As required.
CONNECTIONS-BOTTOM HEAD:4"CBO. Approx.
CONFIG.HEADS-TOP/BTM:Flat top, slight cone bottom head (12°)
PRIOR SERVICE:UNUSED. New custom fabrication built to order.
COMMENTS-ASME ETC.:Top head strengthened to support an agitator with 2 @ 6" wide I-Beams. Top head is 3/16" thick with 2" X 2" X ¼" S.S. angle welded around top of shell. Bottom head is 3/16" thick. 4-internal baffles, equispaced approx. 10"wide X 3/8" thick X 20'Long, weld
