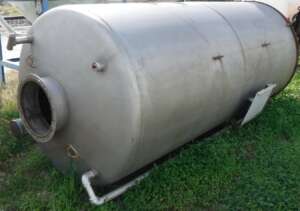

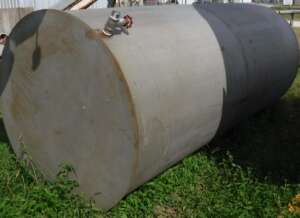

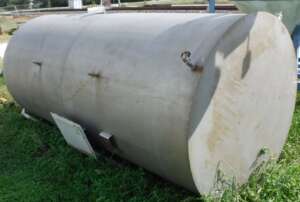

1271112 - TANK-MIX, 2000 GAL, 304SS, ATM#, 5'6'' X 12', VERT, 1HP [1]

  • DATE MFD:1990 approx.
  • TYPE:Agitated tank
  • CAPACITY-GALLONS:2000 Gal.
  • MAT'L CONSTRN-SHELL:304SS
  • ORIENTATION:Vert.
  • PRESSURE-SHELL:ATM#
  • CERTIFICATION-CODE/STD/NBD:U/L listed
  • SHELL-DIAMETER:5'6''
  • SHELL-LENGTH:12'
  • AGITATOR-HP/RPM:1HP, 3/60/230-460V approx. Baldor motor. 3 sets of 3-blade propellors on 1-1/2" dia shaft. Approx.
  • BAFFLES-QTY/W X L:3
  • THICKNESSES-TOP/SH/BTM:Top, Shell, Bottom- 1/4" approx.
  • CONNECTIONS-TOP HEAD:Top-18"bolted agitator mounting pad and cover. 6" vent, 2"[3] NPT
  • CONNECTIONS-SHELL:2", 1" NPT
  • CONNECTIONS-BOTTOM HEAD:NA.
  • CONFIG.HEADS-TOP/BTM:Dished top, flat bottom
  • PRIOR SERVICE:Drinking water. Filled once only.
  • COMMENTS-ASME ETC.:2 Lifting lugs on shell side and 2 on top head. Support frame around agitator shaft and blade set, attached to cover plate, also acts as baffles.
  • SHIPPING SIZE-W X H X L:6'W X 6'H X 14'L
  • APPROX. WEIGHT-LBS:2500#
