- MFD.BY:TBD
- DATE MFD:2006
- TYPE:Mix tank.
- CAPACITY-GALLONS:4200 Gal. Total
- MAT'L CONSTRN-SHELL:316SS
- ORIENTATION:Vertical
- PRESSURE-SHELL:-5"WC/+10"WC @ 180Deg F
- CERTIFICATION-CODE/STD/NBD:ASME Sec VIII.
- SHELL-DIAMETER:9'
- SHELL-LENGTH:8' s-s
- AGITATOR-HP/RPM:5-15HP typical. Top entering, bridge or flange mount. None fitted, available extra (new or used)

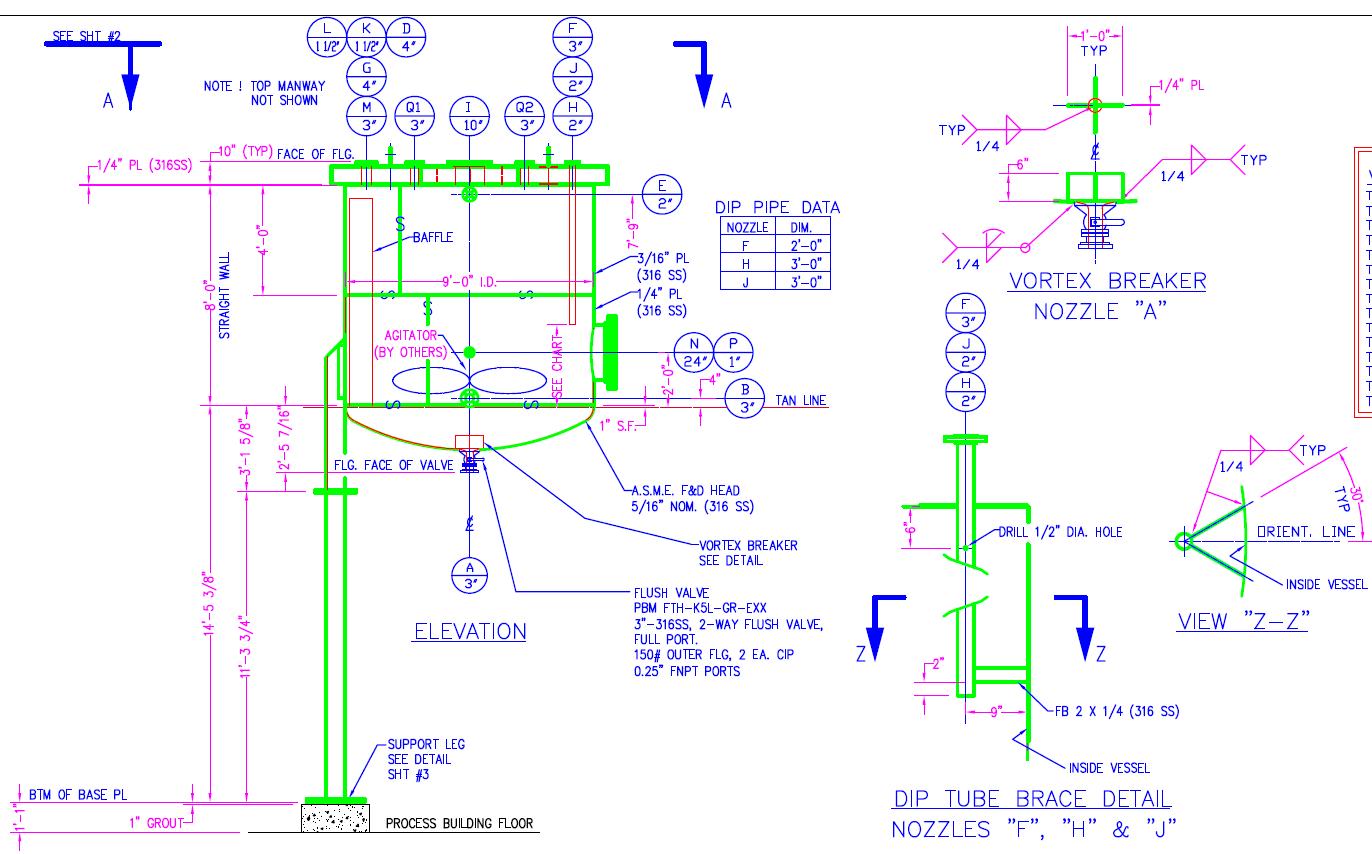

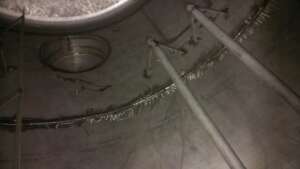

- BAFFLES-QTY/W X L:4-internal baffles, equispaced approx. 10"wide X 1/4"thick X 7'6''long
- THICKNESSES-TOP/SH/BTM:3/16" top, upper shell, 1/4" lower half shell, 5/16" bottom head.

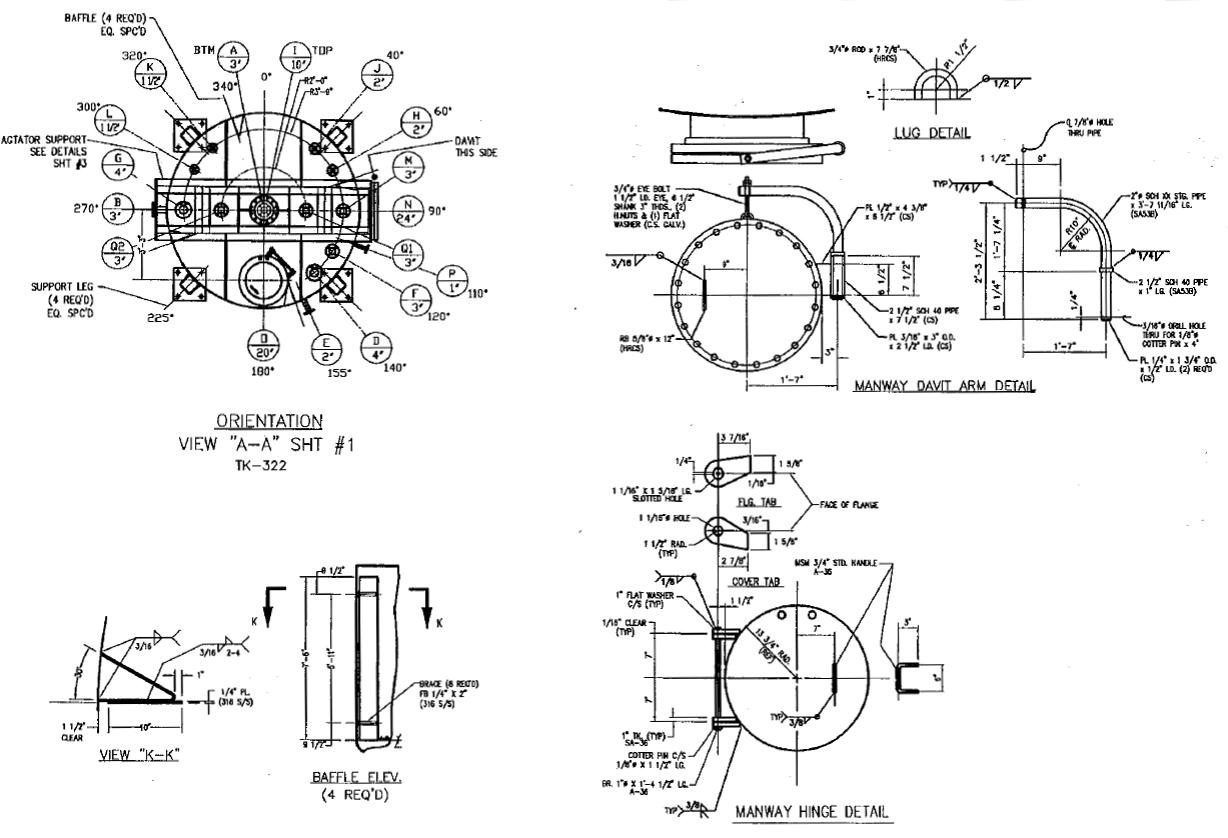

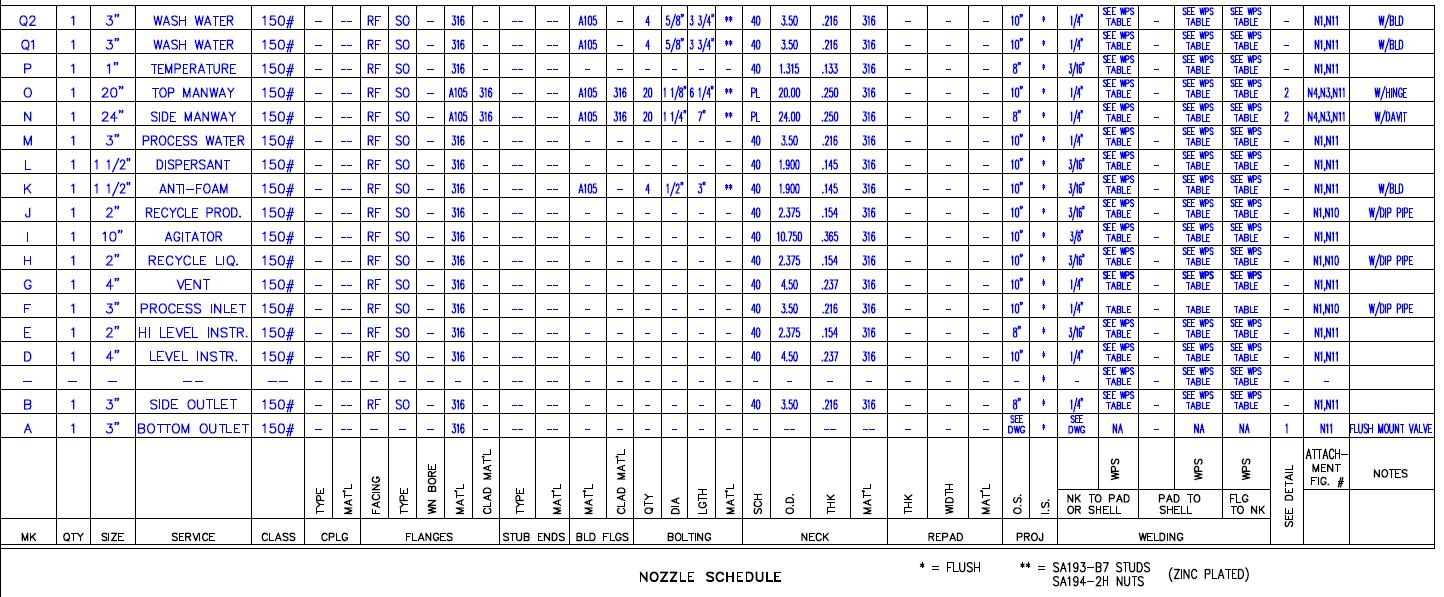

- CONNECTIONS-TOP HEAD:20''MH, 10'' agit, 4"[2], 3"[3], 2"[2], 1.5"[2]

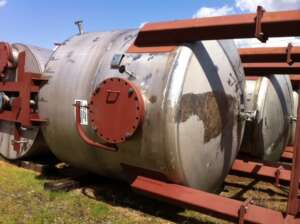

- CONNECTIONS-SHELL:24''MH w/davit, 3'', 2'', 1". All 150#
- CONNECTIONS-BOTTOM HEAD:3"cbo. flanged.
- CONFIG.HEADS-TOP/BTM:Flat top, ASME dished bottom head.
- PRIOR SERVICE:UNUSED
- COMMENTS-ASME ETC.:Max. product density approx. 2.0s.g.
- SHIPPING SIZE-W X H X L:9'6''W X 9'6''H X 20'L
- APPROX. WEIGHT-LBS:12000#
