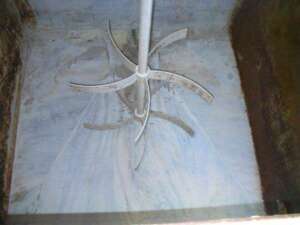

DATE MFD: 1980 approx TYPE: Mix tank CAPACITY-GALLONS: 5000 Gal. [5450 total approx.] MAT'L CONSTRN-SHELL: CS ORIENTATION: Vertical PRESSURE-SHELL: Atm# SHELL-DIAMETER: 9' x 9' Square w/rounded corners, 12" radius approx. SHELL-LENGTH: 9' AGITATOR-HP/RPM: 20HP,3/60/460v, FR256T, 1755 rpm. Top entering. , Myers V.Spd. 3" dia. shaft w/2 sets blades, 46" dia. [5 curved blades 5" x 1/4" approx.] BAFFLES-QTY/W X L: NA THICKNESSES-TOP/SH/BTM: 3/16" approx. CONNECTIONS-TOP HEAD: NA CONNECTIONS-SHELL: NA CONNECTIONS-BOTTOM HEAD: 3"cbo. CONFIG.HEADS-TOP/BTM: Flat top, slant bottom head. (6"deep approx.) PRIOR SERVICE: Blend Let Down, paints COMMENTS-ASME ETC.: Agitator supported on cross beams, (2) 6" beams. Approx. 3" CS angle welded around top of shell. Max. product density approx. 1.5s.g. SHIPPING SIZE-W X H X L: 9'W X 9'H X 15'L APPROX. WEIGHT-LBS: 2000#
