- MFD.BY:Curtis Kelly
- DATE MFD:1989
- TYPE:Mix Vessel
- CAPACITY-GALLONS:50000
- MAT'L CONSTRN-SHELL:304SS solid
- ORIENTATION:Vert
- PRESSURE-SHELL:FV135# @ 300Deg F. Hyd. 137#
- CERTIFICATION-CODE/STD/NBD:ASME NBd
- SHELL-DIAMETER:18' OD
- SHELL-LENGTH:24' T-T

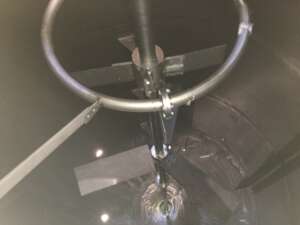

- AGITATOR-HP/RPM:Lightnin. 50HP 45RPM. 4.5"dia shaft. 2 sets impellors, 96"dia & 60" dia

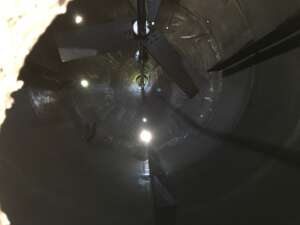

- BAFFLES-QTY/W X L:4
- THICKNESSES-TOP/SH/BTM:1.0233'' heads, 1" lower shell, 0.09375'' upper shell

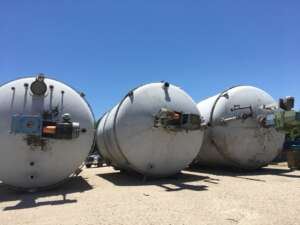

- CONNECTIONS-TOP HEAD:18"Agit, 20"MH, 4"[2], 2", 1".
- CONNECTIONS-SHELL:24", 8"[2], 2", 1"[2]
- CONNECTIONS-BOTTOM HEAD:10" [2], 2"CBO

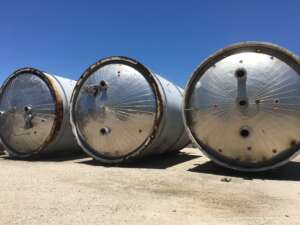

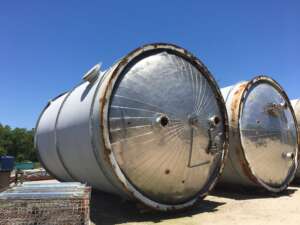

- CONFIG.HEADS-TOP/BTM:2:1 Ellip top/bottom
- PRIOR SERVICE:Polymer Feed tank
- COMMENTS-ASME ETC.:Installed with 4" insulation.
- SHIPPING SIZE-W X H X L:18'W X 18'H X 32'L
- APPROX. WEIGHT-LBS:110000#
