- MFD.BY:Curtis Kelly
- DATE MFD:1989

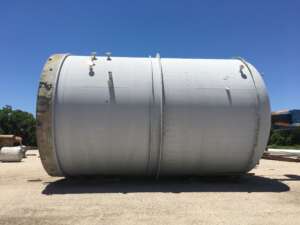

- TYPE:Mix Vessel
- CAPACITY-GALLONS:50000
- MAT'L CONSTRN-SHELL:304SS solid
- ORIENTATION:Vert
- PRESSURE-SHELL:FV80# @ 320Deg F. Hyd. 137#
- CERTIFICATION-CODE/STD/NBD:ASME NBd
- SHELL-DIAMETER:18' OD
- SHELL-LENGTH:24' T-T

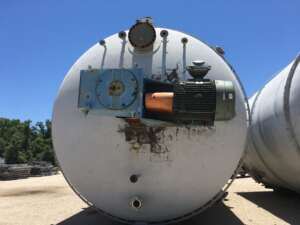

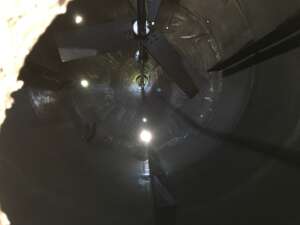

- AGITATOR-HP/RPM:75HP, 3/60/460v XP, 45RPM. Lightnin. Mechanical seals. 4.5"dia shaft. 2 sets 3-blade impellors, 96"dia & 60" dia
- BAFFLES-QTY/W X L:4
- THICKNESSES-TOP/SH/BTM:0.75'' heads, 0.875'' shell
- CONNECTIONS-TOP HEAD:20"Agit, 20"MH, 24", 3" [2], 2" [3]
- CONNECTIONS-SHELL:20", 12", 8", 3"[4]
- CONNECTIONS-BOTTOM HEAD:10"CBO, 12"[2]

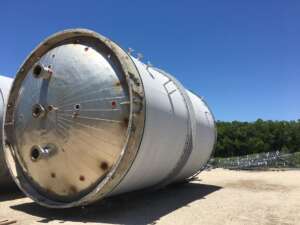

- CONFIG.HEADS-TOP/BTM:2:1 Ellip top/bottom
- PRIOR SERVICE:Polymer Feed tank
- COMMENTS-ASME ETC.:Installed with 3.5" insulation.
- SHIPPING SIZE-W X H X L:18'W X 18'H X 32'L
- APPROX. WEIGHT-LBS:83280#
