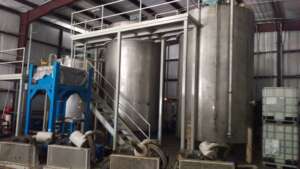

1271311 - TANK-MIX, 6170 GAL, 304SS, ATM#, 10'2'' X 10', VERT, 10HP [1]

  • MFD.BY:Bendel
  • DATE MFD:2002
  • TYPE:Mix tank.
  • CAPACITY-GALLONS:6170 Gal. Nominal
  • MAT'L CONSTRN-SHELL:304SS
  • ORIENTATION:Vertical
  • PRESSURE-SHELL:ATM# @ 150Deg F.
  • SHELL-DIAMETER:10'2'' OD
  • SHELL-LENGTH:10' s-s

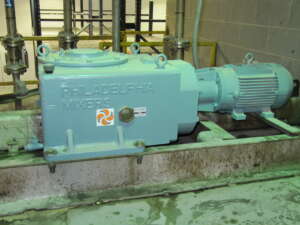

  • AGITATOR-HP/RPM/INCLUDED:Top entering, bridge mounted. Philadelphia 10HP, flange mounted motor 3/60/230-460V, TEFC, w/reduction to ~37RPM output, approx. 2.5" dia. x 10'long shaft w/2 set 3-blade inclined impellors, 12"x15", PCD ~36"dia.

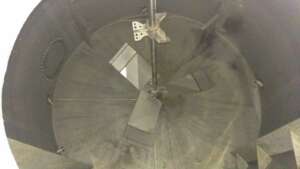

  • BAFFLES-QTY/W X L:(4) equispaced, 9"w x 1/4"thick x 10' long, welded to inner wall via 6 gussets.
  • THICKNESSES-TOP/SH/BTM:Top-3/16" Shell-10ga. [0.135''] Btm- 3/16''

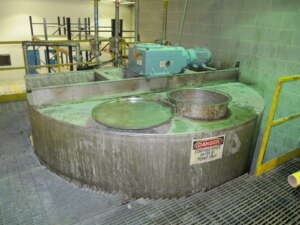

  • CONNECTIONS-TOP HEAD:24"MHw/hinged cover. 6", 2"Agit, 2" [5]
  • CONNECTIONS-SHELL:3"
  • CONNECTIONS-BOTTOM HEAD:2"CBO.
  • CONFIG.HEADS-TOP/BTM:Flat top, shallow cone bottom head.
  • PRIOR SERVICE:Paint pigments.

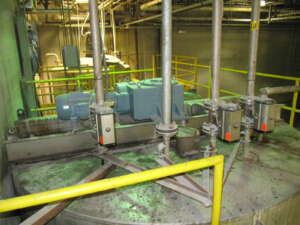

  • COMMENTS-ASME ETC.:Some of original structural steel platform, grating, toe plate, handrails, access stairway available. Originally mounted on load cells under foot pads. Top head strengthened to support an agitator with 2 @ 6" Channels, ladder type cross bracing, all 304SS
  • SHIPPING SIZE-W X H X L:10'6"W X 10'6"H X 13'L approx.
  • APPROX. WEIGHT-LBS:3700#
