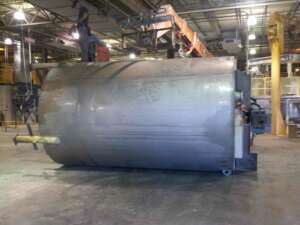

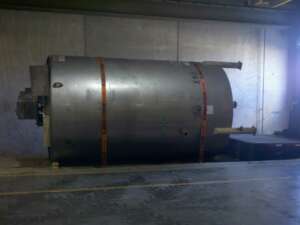

1271310 - TANK-MIX, 7000 GAL, 304SS, ATM#, 9' X 14'6'', VERT, 10HP [2]

  • MFD.BY:Bendel
  • DATE MFD:2002
  • TYPE:Mix tank.
  • CAPACITY-GALLONS:7000 Gal. Total. ~6200gal working.
  • MAT'L CONSTRN-SHELL:304SS
  • ORIENTATION:Vertical
  • PRESSURE-SHELL:ATM# @ 100Deg F.
  • SHELL-DIAMETER:9' OD
  • SHELL-LENGTH:14'6'' s-s

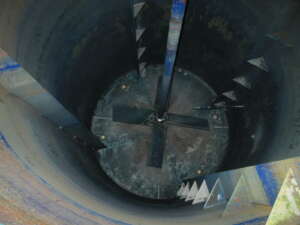

  • AGITATOR-HP/RPM:Top entering, bridge mounted. Philadelphia 10HP, direct coupled motor 3/60/230-460V, TEFC, w/reduction to ~37RPM output, approx. 3" dia. x 13'long shaft w/1 set 4-blade impellors, 10"wide, PCD ~72"dia.

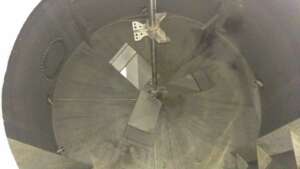

  • BAFFLES-QTY/W X L:(4) equispaced, 9"w x 1/4"thick x 13'6"long, welded to inner wall via 6 gussets.
  • THICKNESSES-TOP/SH/BTM:Top-3/16" Shell-10ga. [0.135''] Btm- 3/16''
  • CONNECTIONS-TOP HEAD:24" x 32" rectangular w/split hinged covers. 8"Agit, 8".
  • CONNECTIONS-SHELL:1"
  • CONNECTIONS-BOTTOM HEAD:4"CBO. 4"[4]
  • CONFIG.HEADS-TOP/BTM:Flat top, shallow cone bottom head.
  • PRIOR SERVICE:Paint pigments. Operated at 6170gal fill.

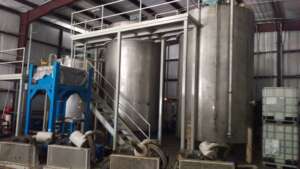

  • COMMENTS-ASME ETC.:Structural steel platform, grating, toe plate, handrails, access stairway, shared with similar 2nd tank. Originally mounted on load cells under foot pads. Top head strengthened to support an agitator with 2 @ 6" x 6" Channels, ladder type cross bracing. 2
  • SHIPPING SIZE-W X H X L:9'6"W X 9'6"H X 13'L approx.
  • APPROX. WEIGHT-LBS:4500#
