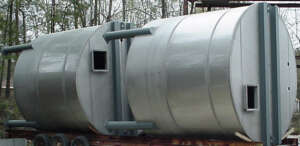

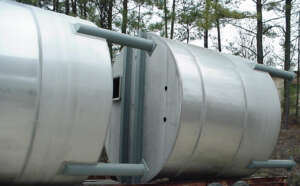

1268828 - TANK-MIX, 7500 GAL, 316LSS, ATM#, 11’ X 10’, VERT, 10HP, NEW [10]
MFD.BY:GPE
DATE MFD:2019
TYPE:Mix tank.
CAPACITY-GALLONS:7500 Gal.
MAT'L CONSTRN-SHELL:316LSS
ORIENTATION:Vertical
PRESSURE-SHELL:ATM#
CERTIFICATION-CODE/STD/NBD:Design/Fab Meet/exceed ASME Sec VIII Div I. with calculations based on allowable stress values per Sec II Part D. Welding per ASME Sec IX qualified procedures. Seams to be double butt welds (SMAW). Materials to ASME Sec II. MTR's available.
SHELL-DIAMETER:11'
SHELL-LENGTH:10' s-s
AGITATOR-HP/RPM:10-50HP typical. Top entering, bridge or flange mount. None fitted, available extra (new or used) Optional extra: 3HP, 3/60/-230-460V, TEFC, w/reduction to 88RPM output, approx. 2" dia. x 10'long shaft w/high efficiency foil type 3 blade impellors 40"dia.
BAFFLES-QTY/W X L:(4) equispaced, 11"w x 1/4"thick x 9' 6"long, bolted to clips welded to inner wall.
THICKNESSES-TOP/SH/BTM:Shell 3/16" lower 4', upper 6' @ 10 guage (0.13"). Top head 3/16". Bottom head 3/16". Optional extra; 3/16" throughout.
CONNECTIONS-TOP HEAD:20" Dia. manway w/cover, 4"(2). Slip ring flanged.
CONNECTIONS-SHELL:NA Available to suit.
CONNECTIONS-BOTTOM HEAD:4"cbo. Slip ring flanged.
CONFIG.HEADS-TOP/BTM:Flat top, slight cone bottom head, 12°/12"deep approx. Optional 45°Cone bottom(w/longer legs to suit).
PRIOR SERVICE:UNUSED New fabrication built to suit
COMMENTS-ASME ETC.:Top head strengthened to support an agitator with 2 @ 6" @ 15# WF wide beams. Top head with 2" X 2" X ¼" S.S. angle welded around top of shell. Max. product density approx. 2.0s.g. Optional extra; Lower shell side jacket 4'high, 304S.S.,dimple, 150#. Opt
