1271547 - TANK, SILO-BLEND, 41500 GAL, 5547 CF, ALUM, ATM#, 12'8'' X 44' + 12'C [9]

  • MFD.BY:Allied
  • DATE MFD:1998 [5] 1989 [5]
  • TYPE:Blending silo
  • CAPACITY-GALLONS:41500gal nominal. 47500Gall total
  • CAPACITY-CU.FEET:5547CF nominal, 6487CF total
  • MAT'L CONSTRN-SHELL:5052 Aluminum
  • PRESSURE-SHELL:Atm# DP 1.5PSIG @160 Deg F
  • SHELL-DIAMETER:12'8''ID
  • SHELL-LENGTH:44' t-t [slanted roof, long side]
  • BLEND METHOD:Air percolation blend
  • NUMBER COMPARTMENTS:1
  • BULK DENSITY:41 PCF
  • SUPPORTS-QTY/TYPE/HIGH:Support ring at lower shell/cone
  • THICKNESSES-TOP/SH/BTM:Top: 5/8" Shell:1/4" upper36', 3/8" lower 8' shell. Cone: 1/4" thick cone. 1/2" x 4" mid height stiffener ring.

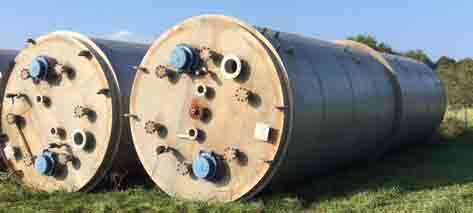

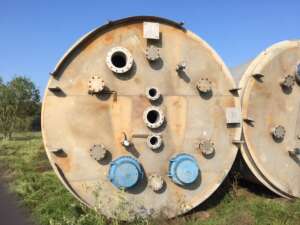

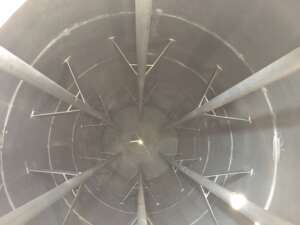

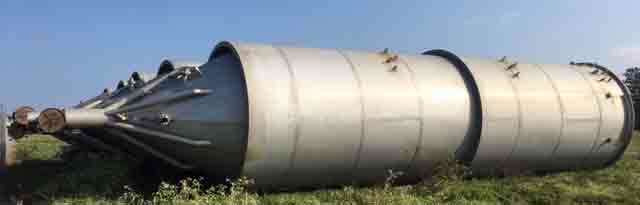

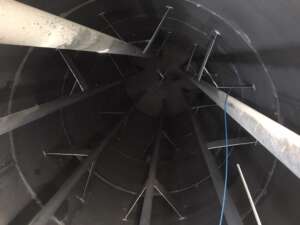

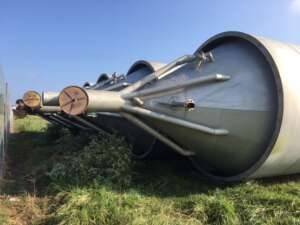

  • CONNECTIONS-TOP/SH/BTM:14", 8",6", [6] 5" blend tubes. Cone: 12" CBO, 4", 2"
  • PRIOR SERVICE:Plastic pellets. 265,985Lbs total @ 41PCF. 222,236Lbs working.

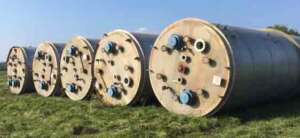

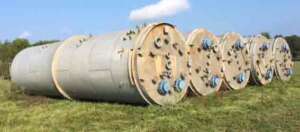

  • COMMENTS:5 units [1998] flanged and bolted design. 59'2'' oal. Ready to ship. Top integral platform 16' x 16'square can be removed. 5 Units [1989] welded shell, same dimensions but no top pad, internal braced support on shell/skirt extension. All have midpoint 4"
  • SHIPPING SIZE-W X H X L:13'5''W X 13'5''H X 59'2''L
  • APPROX. WEIGHT-LBS:12000#
  • QUANTITY:9
