- MFD.BY:Columbian TEC Tank
- DATE MFD:2000 approx
- TYPE:Storage silo
- CAPACITY-GALLONS:22000 Gal.
- CAPACITY-CU.FEET:3000 CF
- MAT'L CONSTRN-SHELL:CS
- PRESSURE-SHELL:ATM#
- SHELL-DIAMETER:12'
- SHELL-LENGTH:29' straight side.
- NUMBER COMPARTMENTS:1
- BULK DENSITY:100PCF Max. product density approx.
- SUPPORTS-QTY/TYPE/HIGH:4 Legs. 8" pipe w/cross bracing.
- THICKNESSES-TOP/SH/BTM:Top-1/4" Shell-NA 1/4'' Bottom-1/4''
- CONNECTIONS-TOP/SH/BTM:Top: 24"MH w/cover. Several std. Cone: 12"dia CBO.
- PRIOR SERVICE:Cement or similar

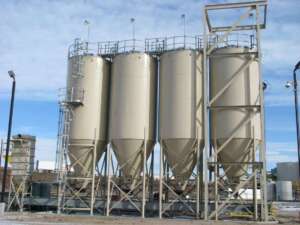

- COMMENTS:Installed. Top head toe plates and handrail supports. Catwalk. Caged ladder.
- SHIPPING SIZE-W X H X L:12'W X 12'H X 44'L
- APPROX. WEIGHT-LBS:15000#
- QUANTITY:4
