- MFD.BY:CST Storage
- DATE MFD:2013

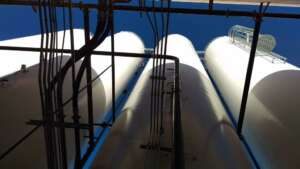

- TYPE:Storage silo
- CAPACITY-GALLONS:45500 Gal. nominal. Total 50000Gal appro
- CAPACITY-CU.FEET:6090 CF Nominal. 6680CF Total, approx.
- MAT'L CONSTRN-SHELL:CS
- PRESSURE-SHELL:16 Oz/Sq In. Vac.8 Oz/Sq In
- SHELL-DIAMETER:12’
- SHELL-LENGTH:56'
- NUMBER COMPARTMENTS:1
- BULK DENSITY:100PCF compacted density. Capacity: 609,000#/270 tons of powder.
- SUPPORTS-QTY/TYPE/HIGH:Skirt 18ft, ground clearance 6' approx.
- THICKNESSES-TOP/SH/BTM:1/4" - 3/8''
- CONNECTIONS-TOP/SH/BTM:Standard, 4" approx.
- PRIOR SERVICE:Bauxite, Kaolin Clay powder
- COMMENTS:All welded construction. Shallow cone top. 77'ft OAH. Top handrail, toe plate, caged access ladder. Pneumatic loading & discharge pipe and connections, valves/controls, ~30HP Blower packages available , extra. Used briefly only..
- SHIPPING SIZE-W X H X L:12'W X 12'H X 77'L
- APPROX. WEIGHT-LBS:40000#
- QUANTITY:4
