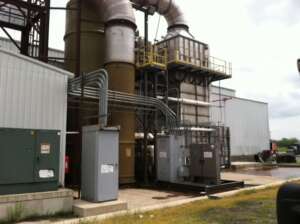

1271173 - WESP, EISENMANN, DOWN FLOW, 63000ACFM, 304SS-FRP-HAST-AL6XN [1]

  • MFD.BY:Eisenmann
  • DATE MFD:2007
  • TYPE:Wet Electrostatic Precipitator. Vertical chamber with electrostatically charged vertical tubes through which dirty gas passes, solids particles become charged and drop out of stream on tube sides. Contaminated gas enters top of system, fine water mist spr

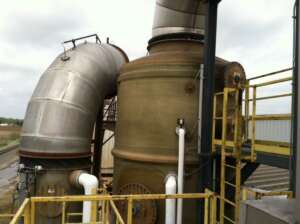

  • MODEL:Adjustable pressure drop Venturi type Rod Deck quencher/ scrubber stage and Spray Tower with adjustable liquid spray rate, 2-stage mist eliminator, DownFlow WESP, installed in series.
  • CAPACITY :Inlet- Total 62000ACFM Wet Gas stream @ 208Deg F, gas moisture 16.7%, Saturated Gas Flow 56,600ACFM @ 136Deg F, 52PPH/ 0.1Gr./ACF particulate loading. Inlet Acid gas 9.9PPH HCl/35.5ppm, SO2 2.3PPH/4.7ppm.nOUT-Total 57000ACFM Wet Gas stream @ 136Deg F, g

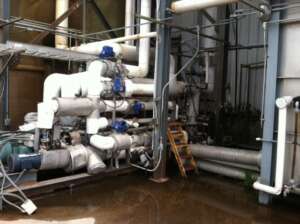

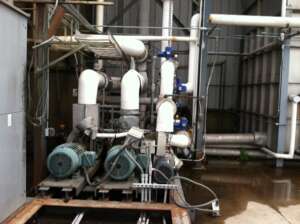

  • MAT'LS CONSTRN:304SS WESP & interconnecting duct; 304SS & R/L Recycle tank, Recycle pumps; FRP Spray tower; AL6XN, Hastelloy & FRP Venturi, adjustable Rod Deck Scrubber. PVC/PP piping.
  • PRIOR SERVICE:HCL & SO2 dilution & particulate removal from gas stream.

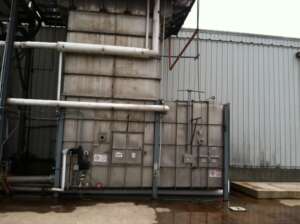

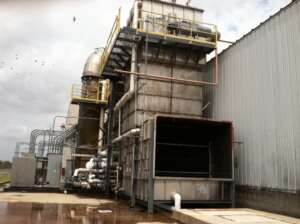

  • COMMENTS:Footprint installed- WESP 11'W X 24'H X 11'L. Overall System- 12'W X 35'H X 39'L. 94000# Wt. 168 @ 10" Square x 10' long 304SS tubes suspended from tubesheet. Total collecting area 6150SF. Total specific collecting area 108SF/kACFM. Discharge Electrodes 1
  • SHIPPING SIZE-W X H X L:12'W X 12'H X 90'L
  • APPROX. WEIGHT-LBS:48000
  • QUANTITY:1
